叉车3吨 Topone TL920 1.5ton Mini Wheel Loader
- Topone
- Qingzhou City
- 15 days
- 100units / month
Rated load: 1500KG , Bucket: 0.65CBM , Engine: 42KW/55HP
1. Euro V engine & Cummins EPA4 for option;
2. Electric Joystick, LCD Dashboard, Reversing Image，Weighing system, Quick Hitch, for option
3. EVarious tread patterns and sizes of tires for different working .

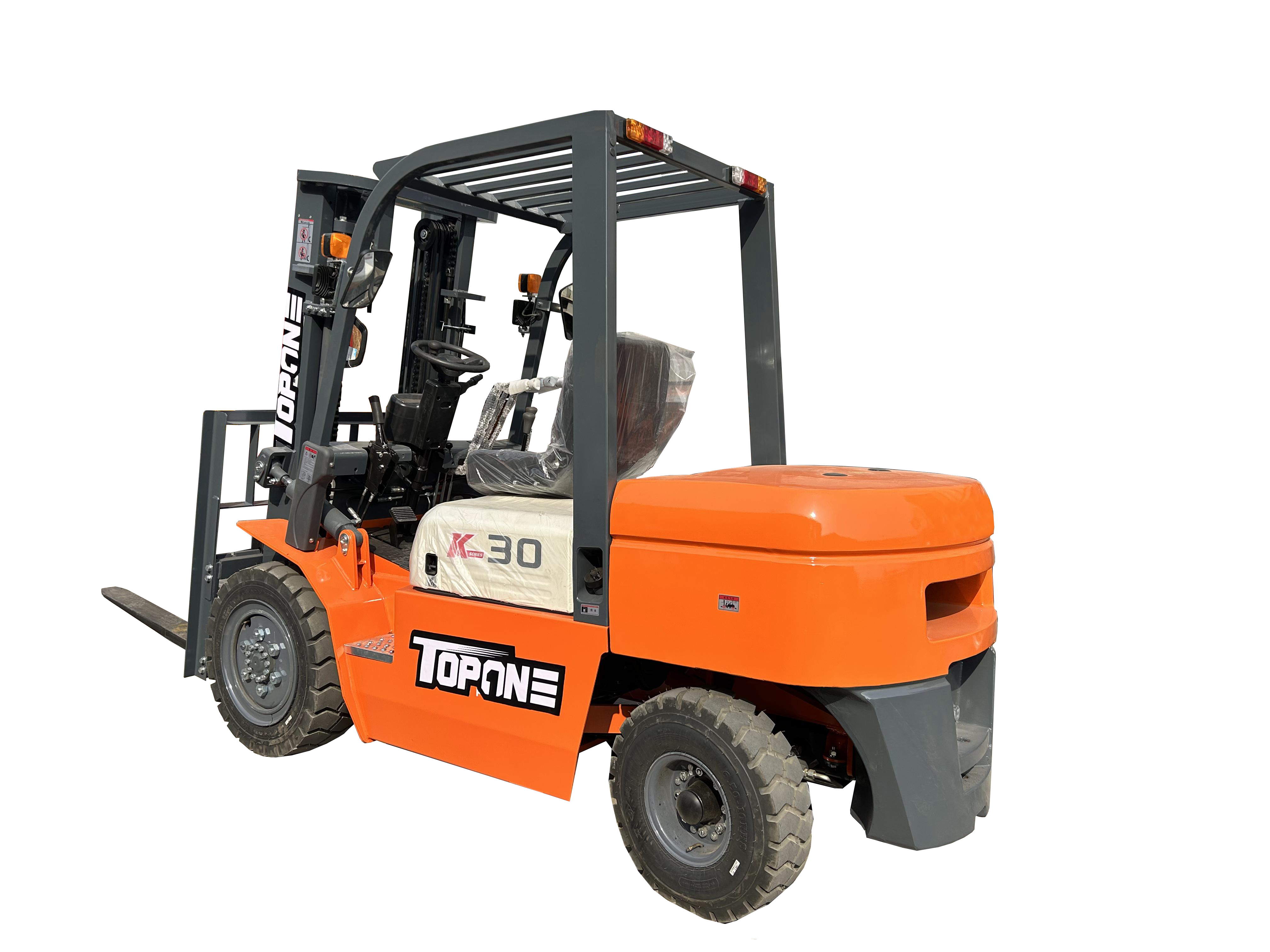

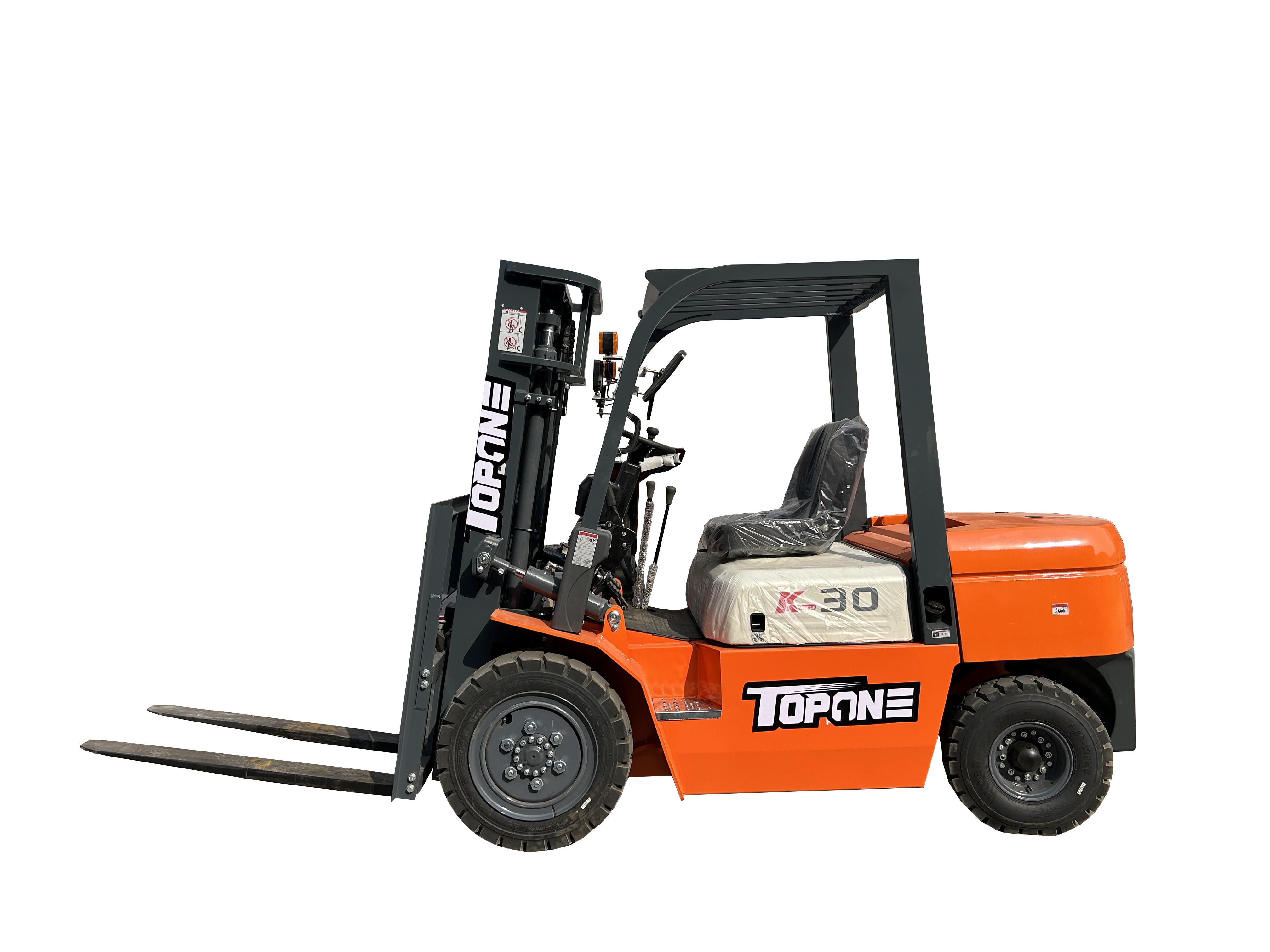

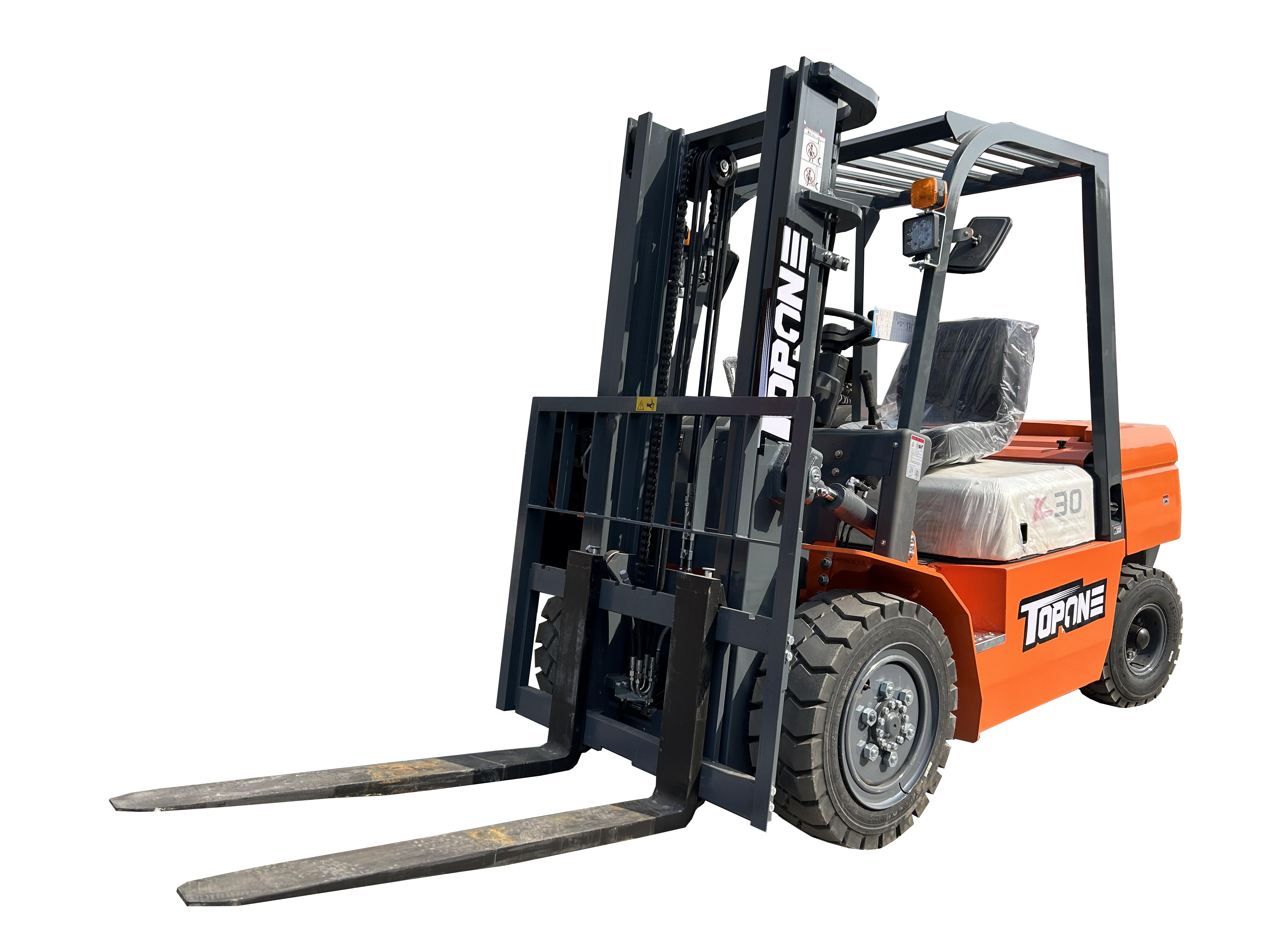

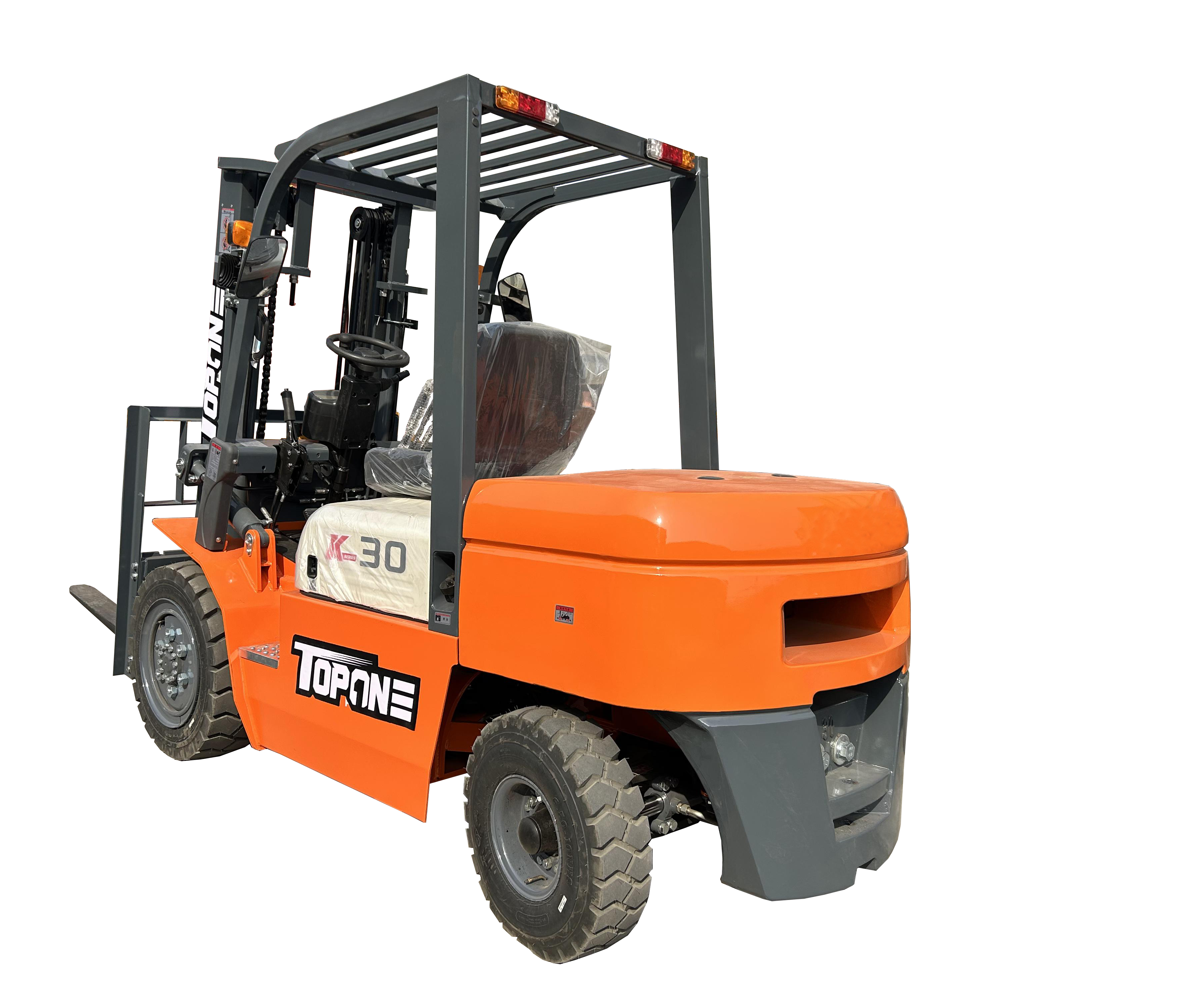

MODEL | CPCD30 | |
RATED LIFTING LOAD | KG | 3000 |
LOAD CENTER DISTANCE | MM | 500 |
FREE LIFTING HEIGHT | MM | 160 |
OVERALL LENGTH ( WITH FORK/WITHOUT FORK ) | MM | 3752/2682 |
WIDTH | MM | 1225 |
OVERHEAD GUARD HEIGHT | MM | 2090 |
WHEELBASE | MM | 1700 |
MINIMUM GROUND CLEARANCE | MM | 135 |
MAST TILT ANGLE (FRONT/REAR) | % | 6°/12° |
TIRE NO. (BEFORE) | 28×9-15-14PR | |
TIRE NO. (AFTER) | 6.5-10-10PR | |
MINIMUM TURNING RADIUS (OUTER SIDE) | MM | 2400 |
MINIMUM RIGHT ANGLE AISLE WIDTH | MM | 4260 |
FORK SIZE | MM | 1070×125×45 |
MAXIMUM WORKING SPEED(FULL-LOAD/NO-LOAD ) | KM/H | 18/19 |
MAXIMUM LIFTING SPEED(FULL-LOAD/NO-LOAD ) | MM/S | 440/480 |
MAXIMUM GRADEABILITY(FULL-LOAD/NO-LOAD ) | % | 15/20 |
FORKLIFT WEIGHT | KG | 4250 |
